Resin bound driveway Oxford – Abingdon – 210㎡

Resin bound driveway Oxford – Abingdon – 210㎡

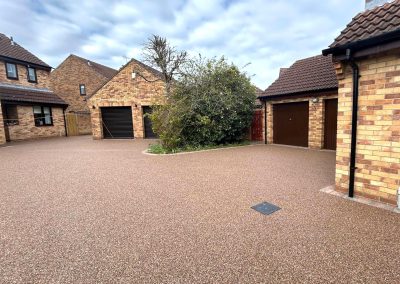

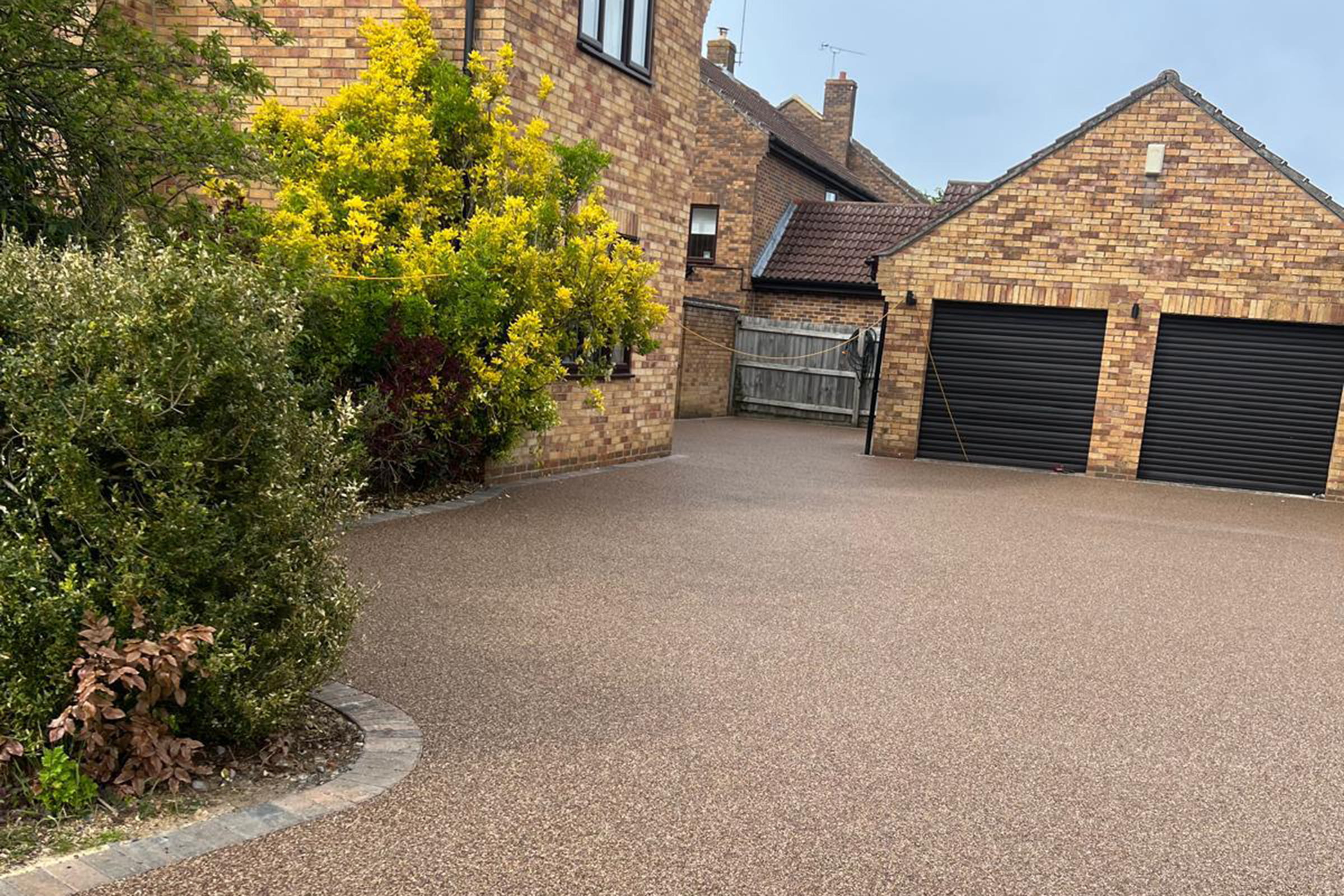

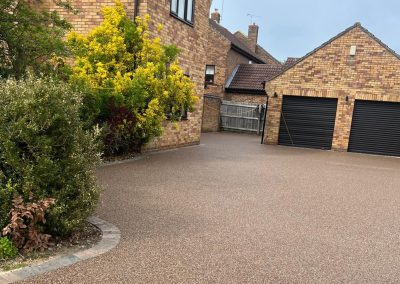

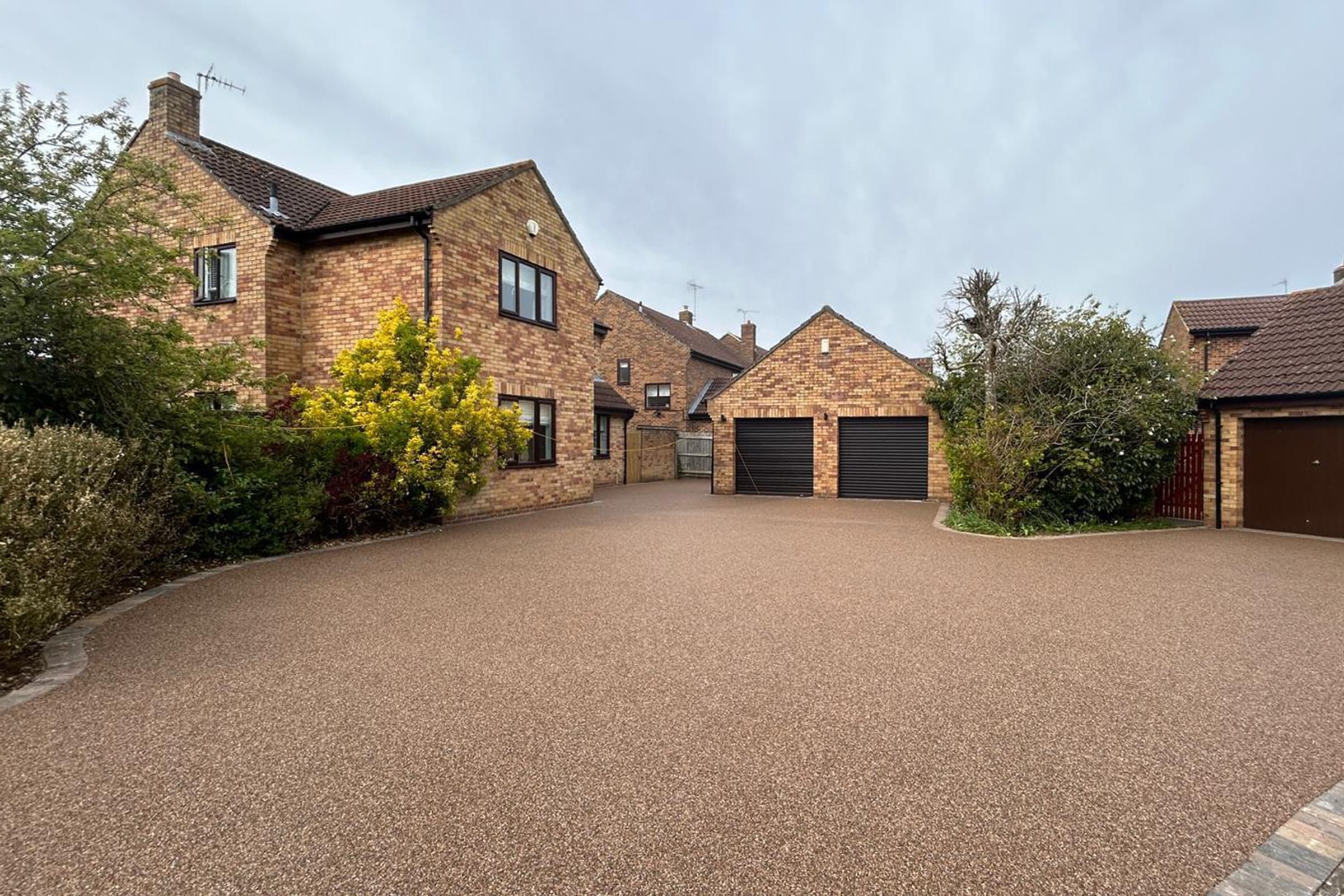

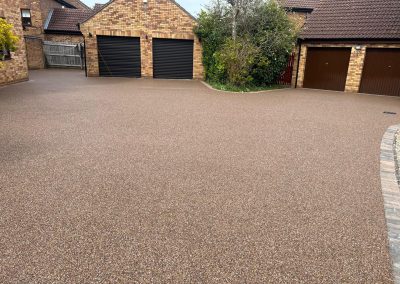

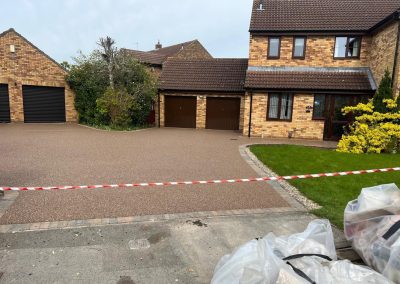

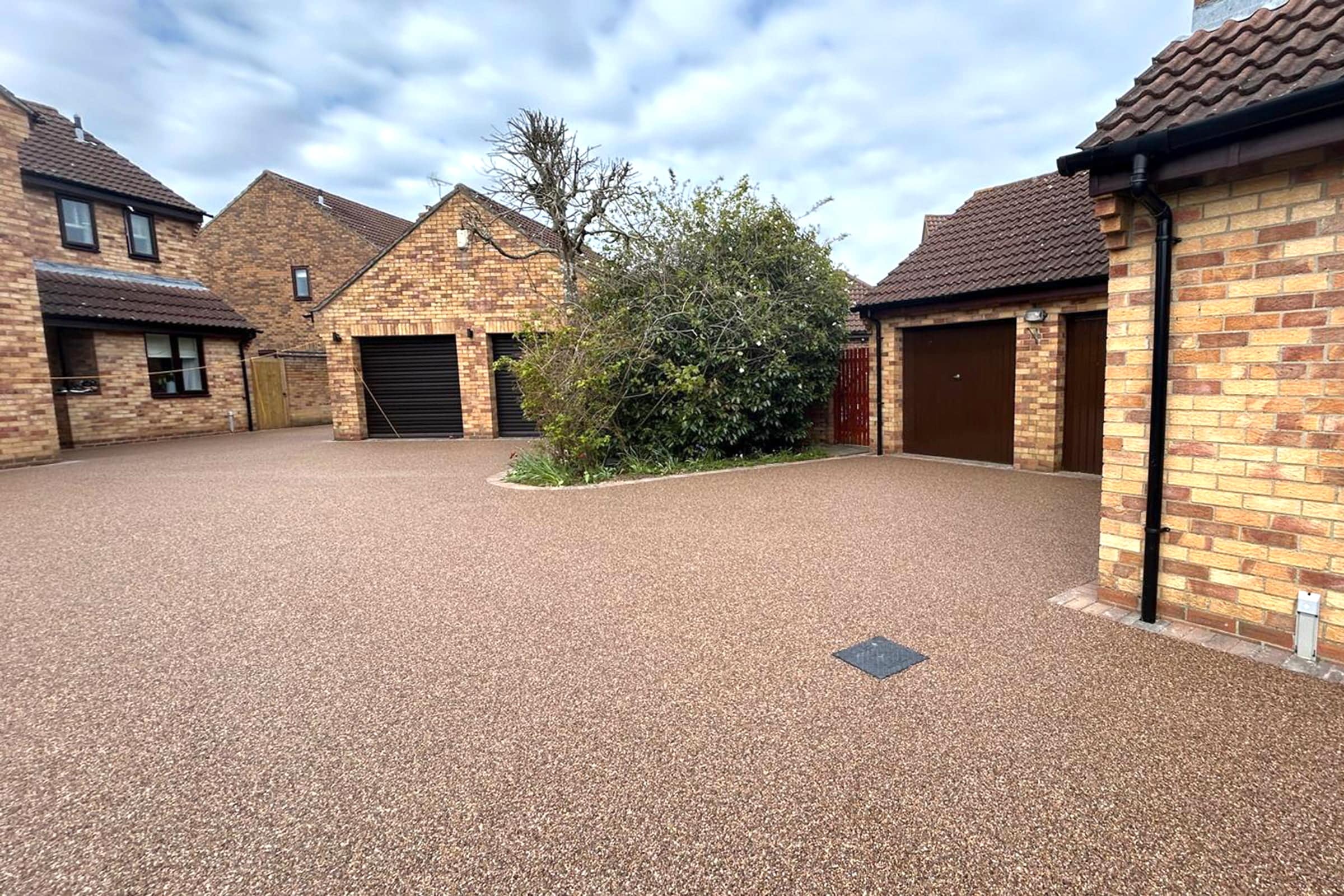

Liberty Driveways completed this 210㎡ resin bound driveway project in Oxfordshire in 2024, creating a practical and attractive driveway surface for the property. Resin bound surfacing combines natural aggregates with a specialist resin to produce a smooth, hard-wearing finish, with a choice of colours and textures to complement the surrounding buildings and outdoor space.

A professionally installed resin bound driveway can provide an appealing alternative to traditional paving, with the added benefit of permeability when installed as part of a suitable system. This makes resin bound surfacing a popular choice for homeowners looking to improve the appearance and usability of their driveway.

Installing a resin bound driveway in Abingdon

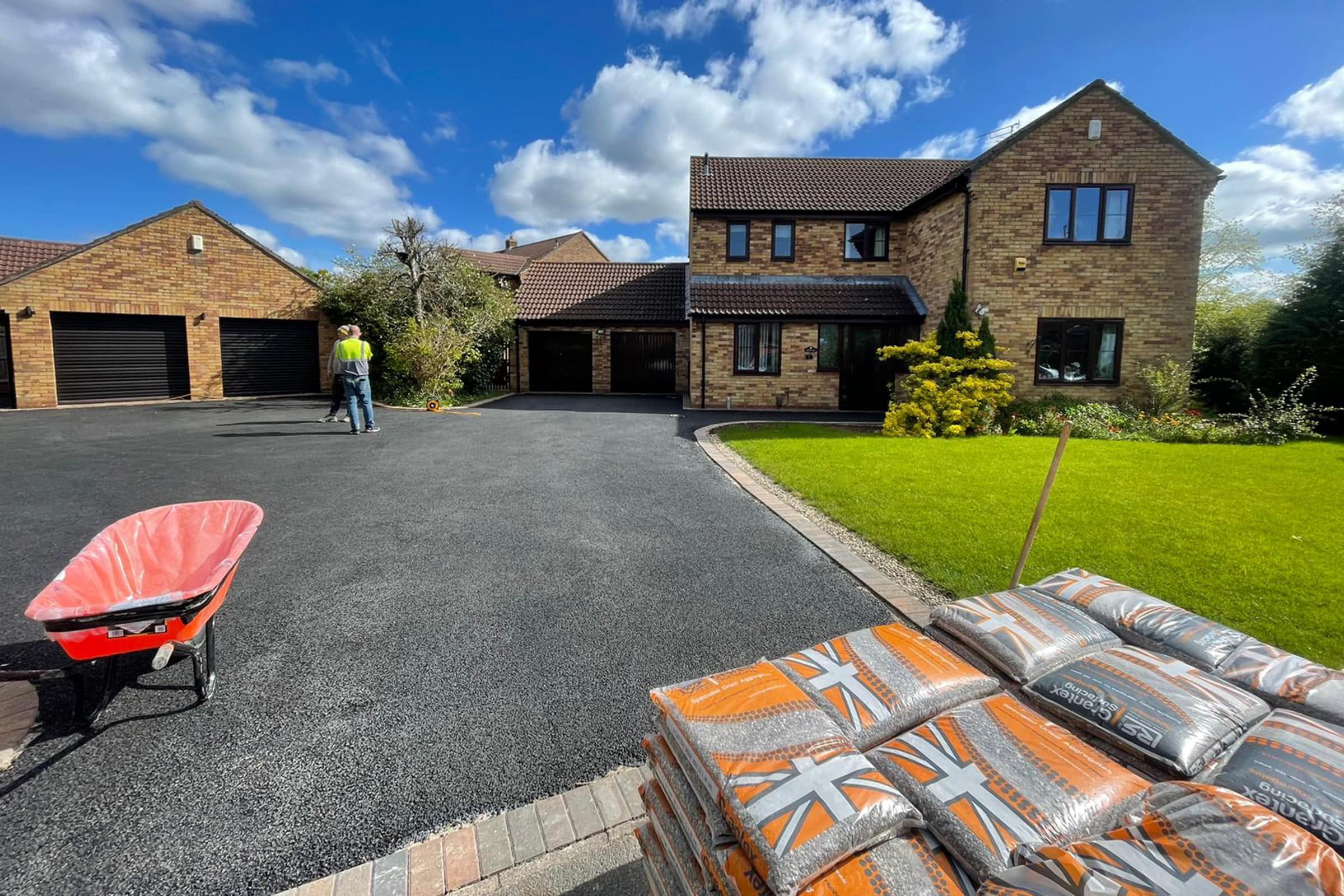

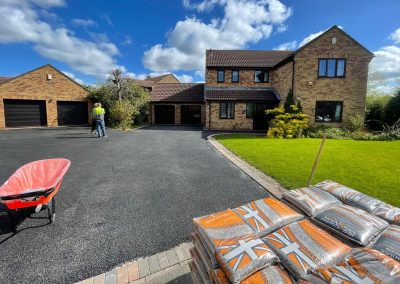

Preparing the surface

Good preparation is essential to a successful resin bound driveway installation. Before the resin and aggregate can be laid, the existing surface must be assessed to establish whether it provides a suitable, stable base. The condition of the substrate, drainage requirements and intended use of the driveway all influence the preparation work required.

The preparation stage helps create a sound foundation for the finished surface and reduces the risk of problems caused by movement or an unsuitable base.

Key considerations include:

• Checking the condition and suitability of the existing base.
• Ensuring the surface is clean and properly prepared before installation.
• Assessing levels, falls and drainage requirements.
• Confirming that the base is appropriate for the intended traffic and loading.

The precise preparation method depends on the condition of the site. For more information, read our guide to laying a resin driveway on concrete.

Mixing the resin bound aggregate

Once the base is ready, the resin and selected aggregate must be combined thoroughly to create a consistent mixture. Liberty Driveways uses specialist forced action mixers for this important stage of the installation process.

Unlike a standard drum cement mixer, which relies largely on gravity to tumble the contents, a forced action mixer has a stationary drum and rotating internal paddles. These actively fold, shear and blend the materials, helping distribute the resin evenly throughout the aggregate.

This controlled mixing process is particularly important for resin bound surfacing, where a consistent blend helps the aggregate bind together and produces a uniform finish.

Why forced action mixing matters

• Consistent coverage: helps distribute the resin throughout the aggregate.
• Reliable mixing: actively blends the materials rather than relying on gravity alone.
• Uniform appearance: supports a consistent texture and finish across the driveway.
• Professional installation: uses equipment suited to the demands of resin bound aggregate.

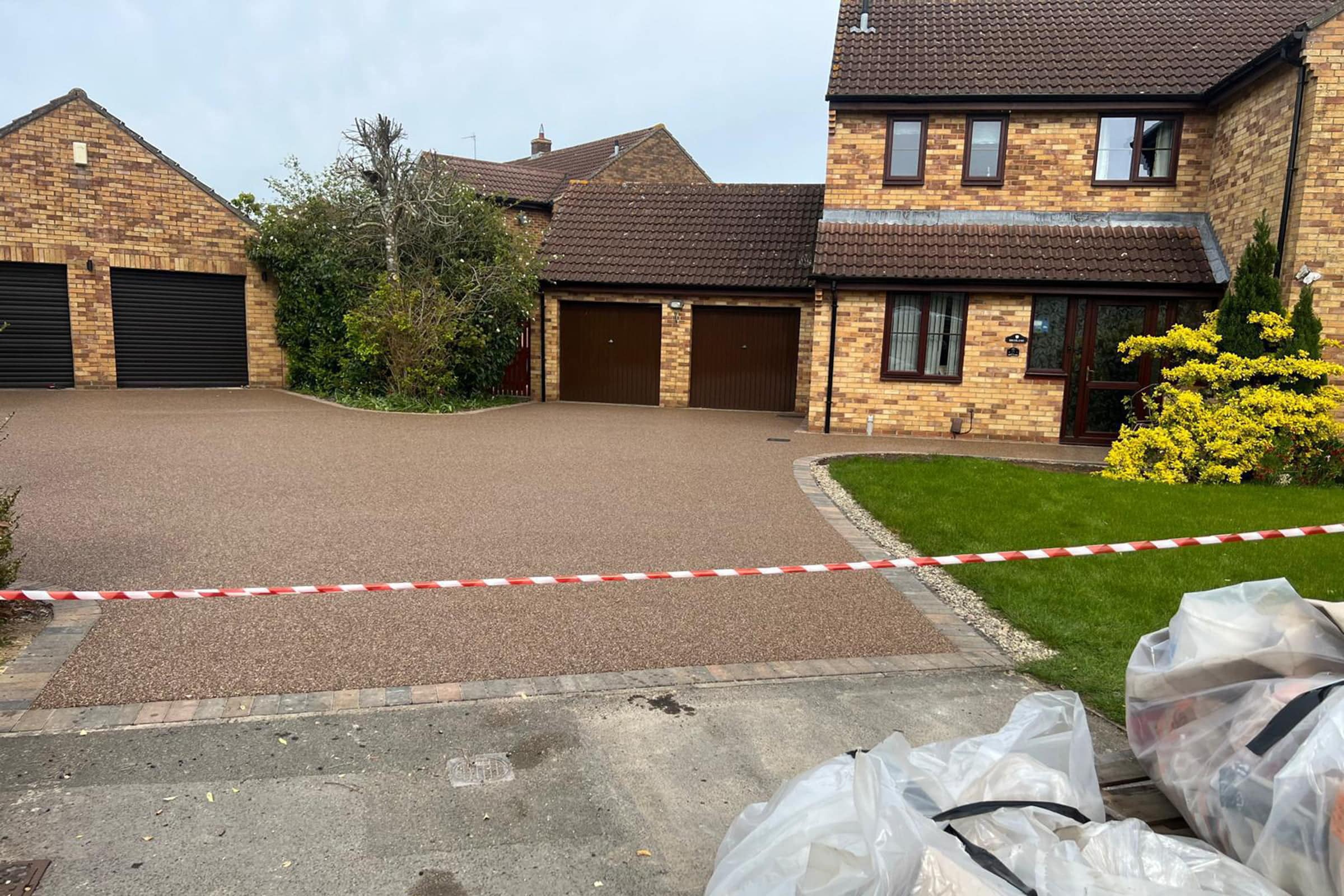

Laying and finishing the driveway

The mixed resin bound aggregate is spread over the prepared base and carefully levelled to create an even surface. The installers work methodically to maintain a consistent depth, texture and appearance throughout the driveway.

For a 210㎡ installation, careful organisation is particularly important. The mixing and laying process needs to be coordinated so that each batch can be placed and finished while the material remains workable. Weather conditions, access, the specification of the resin system and the condition of the base can all affect the installation schedule.

The exact installation duration for this Abingdon project was not included in the original project information, so a specific number of days cannot be confirmed. For a general explanation of the process and factors affecting the timescale, see our guide to how long a resin driveway takes to install.

Permeability and drainage

One of the key advantages of a correctly specified resin bound driveway is that the finished surface can be permeable. Small gaps between the individual aggregate particles allow water to pass through the surface, helping rainwater drain into a suitable permeable base where the complete construction has been designed to support this.

Permeability can be an important consideration when planning a driveway, particularly where surface water needs to be managed carefully. A permeable resin bound system may also support the principles of SuDS, which aim to manage rainwater close to where it falls.

The drainage performance of a driveway depends on more than the surface material alone. The underlying construction, ground conditions, available drainage and site layout must all be considered. Permeability should therefore be assessed as part of the complete driveway design rather than assumed from the appearance of the finished surface.
